CHROMOPHARE® EXAM LIGHTING



Ideal color
With a color temperature of 4300K (closest to noon sunlight), CHROMOPHARE produces a neutral white light on the field foraccurate color rendition and tissue differentiation.

User convenience
Bulb exchange is quick and tool-free.

Known for light: BERCHTOLD's signature, multi-faceted, mirrored polygon reflector is responsible for delivering pure, high.intensity light to the examination and/or surgical field.

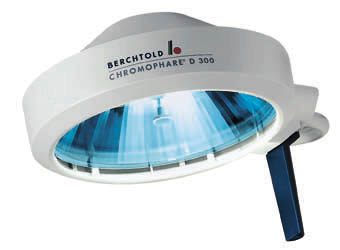

From BERCHOLD, the leaders in surgical lighting technology, comes the CHROMOPHARE® D 510 and D 300 our versatile minor procedure and exam lighting to meet your ER, trauma, lab and other exam specialty needs. With configurations including ceiling mounts, wall mounts and mobile floorstands, each light boasts the same color-correct, shadow-free illumination as our surgical lights but with a footprint better suited for emergency, laboratory and examination environments.

Illumination where and when you need it

Bright, focused and shadow free A highly efficient double-optical, mirrored polygon reflector returns 98% of original illumination to the site delivering: l an adjustable field diameter (optional) and intensity of 130,000 lux for D 510 l a fixed field diameter and intensity of 50,000 lux for D 300

Depth of field Refocusing is unnecessary when changing table height as bighter, clearer light creates a working site with a depth of field (L1+L2) of: l 125 cm for D 510 l 130 cm for D 300

Color correct At 4300K, the patented CHROMOPHARE double filter color-correction system casts a neutral white light on the surgical field for accurate color rendition and tissue differentiation.

Precise positioning Strong, yet easily repositionalble offering maximum user convenience and flexibility when maneuvering the lighthead to the desired position.

Wall mount Ideal for laboratories and examination rooms where ceiling height is restricted; configured as: l D 300-single or dual arm

Ceiling mount Ideal for emergency or examination rooms; configured as: l D 300-single or dual arm l D 510-dual arm

Flexible With ceiling mounting or tip-resistant mobile floorstands, D 510 (offered with our minor suspension) can be custom-configured (light with brightness control, field size adjustment, spare lamp with automatic switch-over ?optional with 40 % or with 100 % intensity ?or rail for easy handling) to perform various functions. CHROMOPAHRE D 510 and D 300 exam lights go where you need them. Their ultra-light, drift-free suspensions offer fingertip control for optimal light source positioning and superior maneuverability: l 270° lighthead rotation for D 300 l 360° lighthead rotation for D 510

Floorstand Ideal for environments where mobility is a priority; configured as: l D 300 l D 510

Standard features		D 300		D 510
Color temperature		4300K		4300K
Intensity		50.000 Lux		130.000 Lux
Color rendering index		88		93
Light field diameter		140 mm		170 mm
Depth of illumination (L1+L2)		130 cm		125 cm
Radiant energy		4 mW / m²lx		3,5 mW / m²lx
Bulb		Halogen 12V / 50W		BRITe 22,8V / 150W
Lifetime of bulb		1000 h		1000 h



Optional features		D 300		D 510
Intensity control		no		65.000 - 130.000 Lux
Field size adjustment		no		170 - 280 mm
Rail		no		available
Backup lamp (40 % intensity )		no		available
Backup lamp (100 % intensity )		no		available
Second gimbal joint (classic cardanic suspension) 1		no		available
CCD-camera with fixed zoom (FZ)		no		available
CCD-camera with variable zoom (AFII) 2		no		available
Wall control 1,3		no		available
EndoLite 3,4		no		available

All lighting specifications ±10%
1 Not available on mobile light
2 Only in combination with field size adjustment
3 Only in combination with brightness control
4 Only in combination with backup lamp
